Body Support

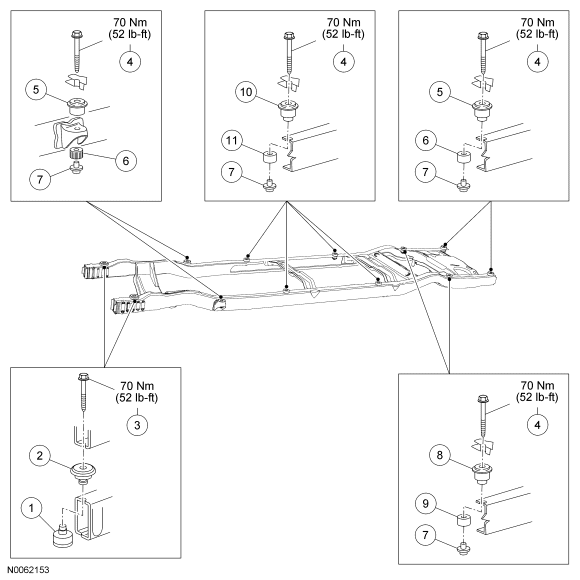

Fig 1: Body Mount, E-150 With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1000193	Absorber lower (2 required)
2	1000192	Absorber assembly (snap together) (2 required)
3	N811231	Bolt and washer (2 required)
4	N811895	Bolts and washers (10 required)
5	1000192	Absorber assemblies upper (blue stripe) (4 required)
6	1000155	Absorbers lower (black) (4 required)
7	1000151	Retainer assemblies (body bolt lower) (4 required)
8	1000192	Absorber assembly upper (black stripe) (4 required)
9	100153	Absorbers lower (black stripe) (4 required)
10	1000152	Absorber assembly upper (red stripe) (2 required)
11	1000155	Absorbers lower (red stripe) (2 required)

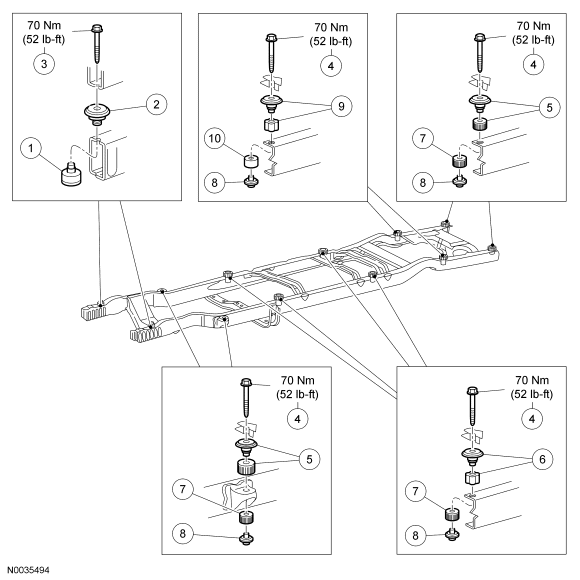

Fig 2: Body Mount, E-250, Regular Van With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1000193	Absorber lower (2 required)
2	1000192	Absorber assembly (snap together) (2 required)
3	N811231	Bolt and washer (2 required)
4	N811895	Bolts and washers (10 required)
5	1000192	Absorber assemblies upper (black) (4 required)
6	1000192	Absorber assemblies upper (fluted) (4 required)
7	1000155	Absorbers lower (black) (8 required)
8	1000151	Retainer assemblies (lower) (10 required)
9	1000192	Absorber assembly upper (yellow) (2 required)
10	1000155	Absorber lower (yellow) (2 required)

Fig 3: Body Mount, E-350 (Regular Van/Wagon) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1000193	Absorber lower (2 required)
2	1000192	Absorber assembly (snap together) (2 required)
3	N811231	Bolt and washer (2 required)
4	N811895	Bolts and washers (10 required)
5	1000192	Absorber assemblies upper (black) (4 required)
6	1000192	Absorber assembly upper (blue stripe) (6 required)
7	1000155	Absorbers lower (black) (10 required)
8	1000151	Retainer assemblies (body bolt lower) (10 required)
9	5B097	Bumper assembly (2 required)

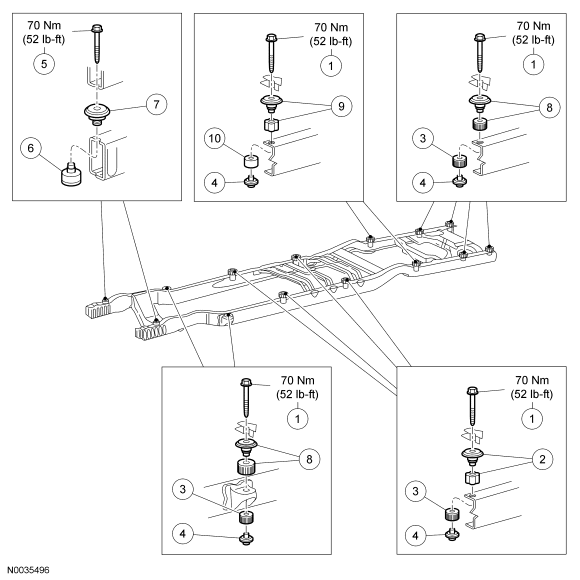

Fig 4: Body Mount, E-250, Super Van With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N811895	Bolts and washers (12 required)
2	1000192	Absorber assembly upper (fluted) (4 required)
3	1000155	Absorbers lower (black) (10 required)
4	1000151	Retainer assemblies (lower) (12 required)
5	N811231	Bolt and washer (2 required)
6	1000193	Absorber lower (2 required)
7	1000192	Absorber assembly (snap together) (2 required)
8	1000192	Absorber assemblies upper (black) (6 required)
9	1000192	Absorber assembly upper (yellow) (2 required)
10	1000155	Absorber lower (yellow) (2 required)

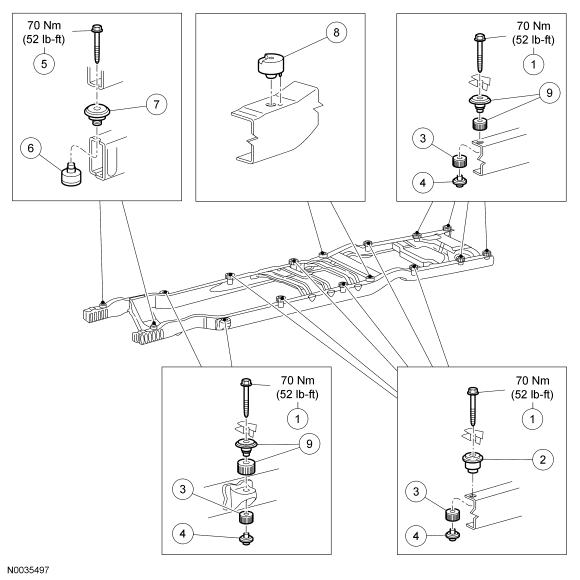

Fig 5: Body Mount, E-350 (Super Van/Wagon) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N811895	Bolts and washers (12 required)
2	1000192	Absorber assembly upper (blue stripe) (6 required)
3	1000155	Absorbers lower (black) (12 required)
4	1000151	Retainer assemblies (body bolt lower) (12 required)
5	N811231	Bolt and washer (2 required)
6	1000193	Absorber lower (2 required)
7	1000192	Absorber assembly (snap together) (2 required)
8	5B097	Bumper assembly (2 required)
9	1000192	Absorber assembly upper (black) (6 required)

Refer to the preceding illustrations.
- For information on E350 and E450 Cutaway and Stripped Chassis models, refer to the Ford Light and Heavy Truck Body Builder's Layout Book.
