Home >> Ford >> 2007 >> Cutaway 6.0 P >> Repair and Diagnosis >> Steering >> Steering Column >> Removal And Installation >> Steering Wheel >> Notes

Steering Wheel: Notes

Special Tools

Illustration Tool Name Tool Number
GF0003222
 Remover, Differential Bearing 205-116 (T77F-4220-B1)

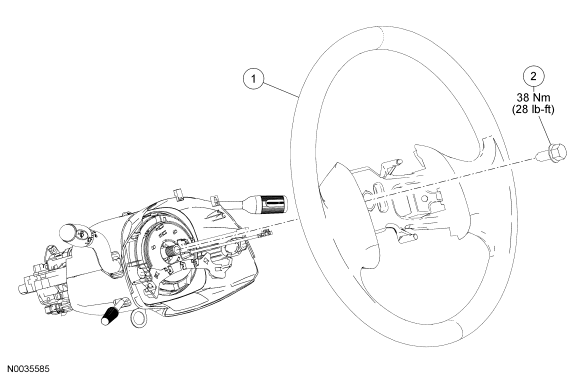

Fig 1: Exploded View Of Steering Wheel With Torque Specifications
GF0007791Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3600 Steering wheel
2 N804385 Bolt
