Power Steering Pump: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |
NOTE:

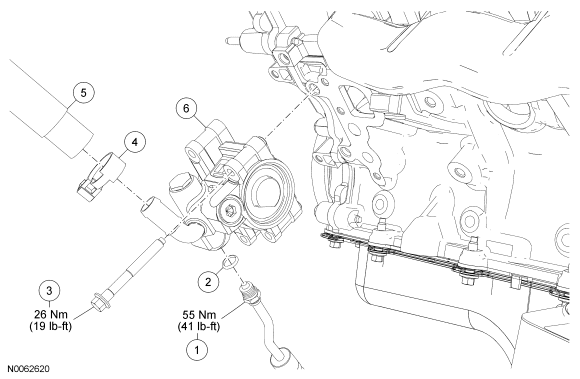

Gas engine shown, diesel engine similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 3A719 | Power steering pressure line-to-pump fitting |
| 2 | 388898 | Teflon® seal |
| 3 | N806176 | Power steering pump bolt (4.6L, 5.4L, 6.8L) (3 required) |
| 3 | N806176 | Power steering pump bolt (6.0L) (4 required) |
| 4 | 3C750 | Clamp |
| 5 | 3691 | Power steering reservoir-to-pump hose |
| 6 | 3A674 | Power steering pump |
