Wheel Speed Sensor - Rear: Notes

MATERIAL

Item	Specification
Motorcraft SAE 75W-140 High Performance Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) (vehicles with the trailer towing option or 4:10 ratio)	WSL-M2C192-A

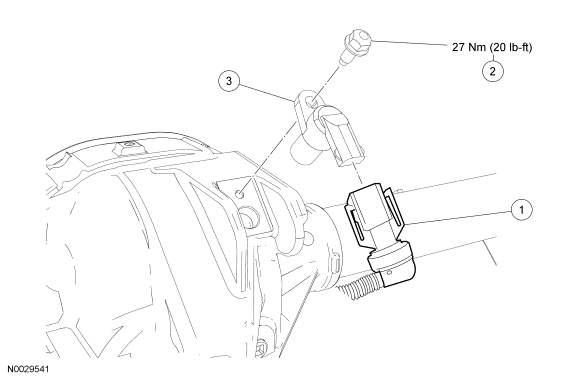

Fig 1: Exploded View Of Rear Wheel Speed Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Rear wheel speed sensor electrical connector
2	-	Rear wheel speed sensor bolt
3	9E731	Rear wheel speed sensor
