Hydraulic Control Unit (HCU): Notes

MATERIAL

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada)	ESA-M6C25-A or WSS-M6C62-A

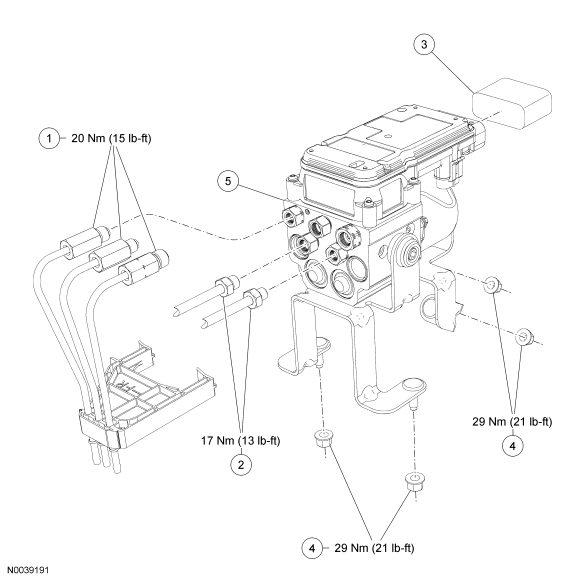

Fig 1: Exploded View of Hydraulic Control Unit HCU with Torque Specifications

GF0012317

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2264	1/2-20 brake tube fittings
2	2234	7/16-24 brake tube fittings
3	-	Anti-lock brake system (ABS) module electrical connector
4	N620481	Hydraulic control unit (HCU) nuts (4 required)
5	2C219	HCU
