Window Control Switch: Notes

NOTE: LH side shown, RH side similar.

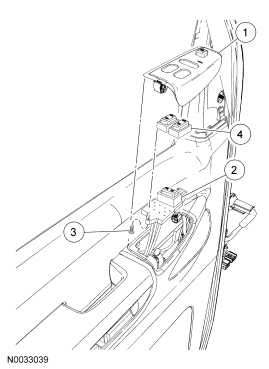

Fig 1: Exploded View Of Window Control Switch
GF0011384Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14524 Window control switch bezel
2 14630/14631 Electrical connector
3 - Screw (2 required)
4 14529 Window control switch
