Safety Belt Buckle - Front, Center: Notes

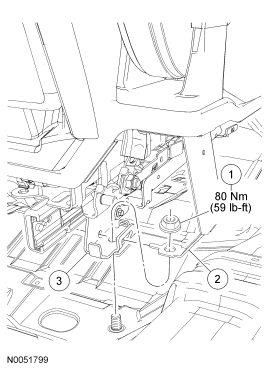

Fig 1: Exploded View Of Front Center Safety Belt Buckle With Torque Specifications
GF0013294Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Nut
2 611B76 Center safety belt and tongue
3 - Seat assembly
