Vehicle Dynamics Module (VDM): Notes

WARNING: This page is about a different car, the 2007 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

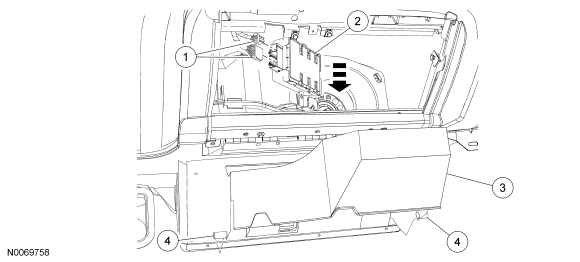

Fig 1: Exploded View Of Vehicle Dynamics Module (VDM)
GF0013907Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Air suspension module electrical connectors (2 required) (part of 14489)
2 3C142 Vehicle dynamics module (VDM)
3 06024 Glove compartment door
4 - Glove compartment door tabs (2 required) (part of 06024)
