Side Air Bag Module Connectors

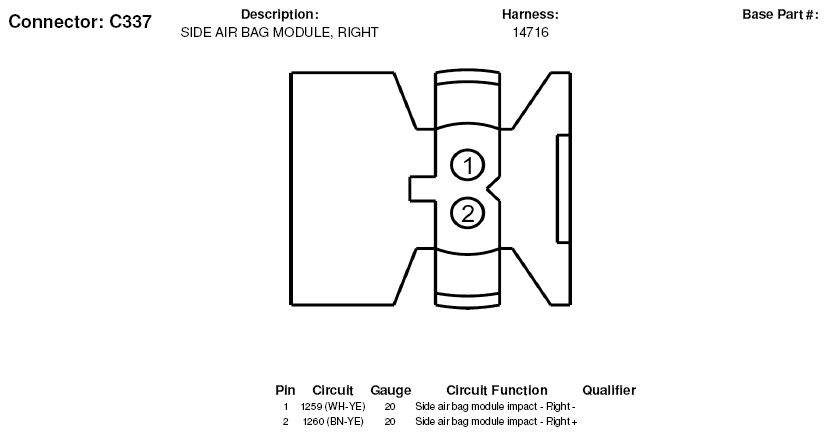

Fig 1: Side Air Bag Module Connector End View (C337)

G05178073

Courtesy of FORD MOTOR CO.

Fig 2: Side Air Bag Module Connector End View (C367)

G05178083

Courtesy of FORD MOTOR CO.
