Master Window Adjust Switch Connector

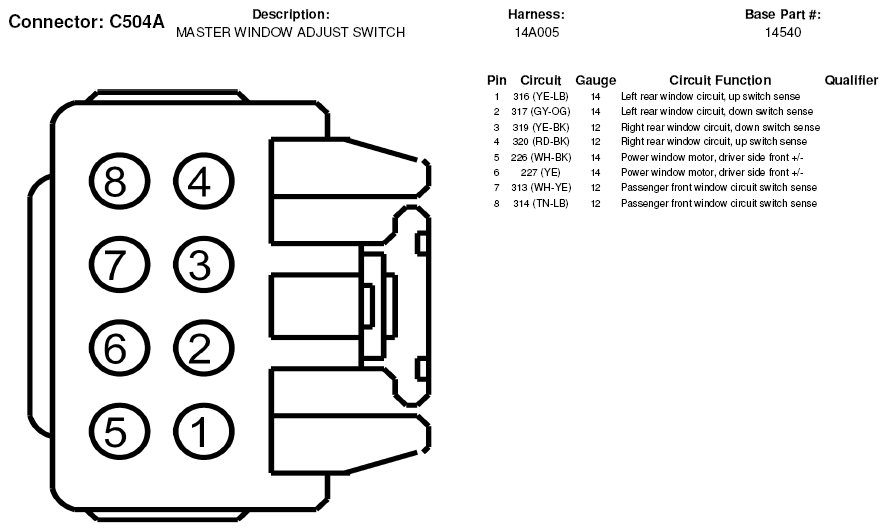

Fig 1: Master Window Adjust Switch Connector End View (C504A)
G05178114Courtesy of FORD MOTOR CO.

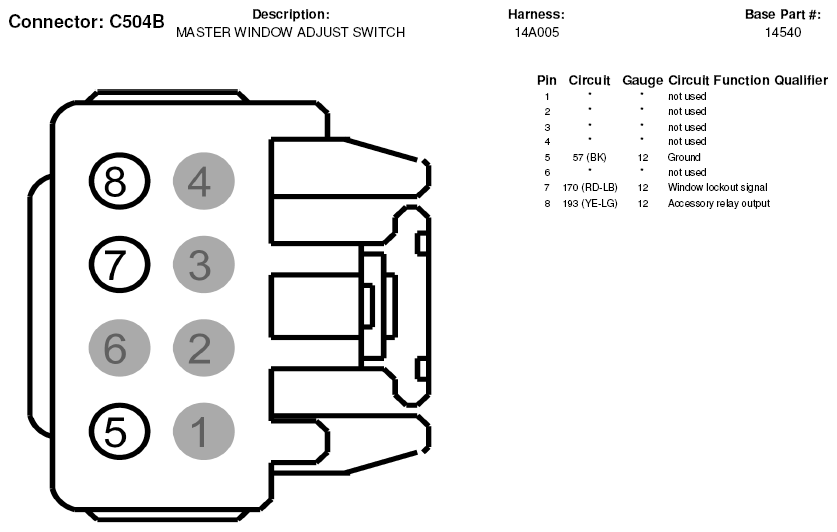

Fig 2: Master Window Adjust Switch Connector End View (C504B)
G05178115Courtesy of FORD MOTOR CO.
