Extension Housing Gasket: Notes
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

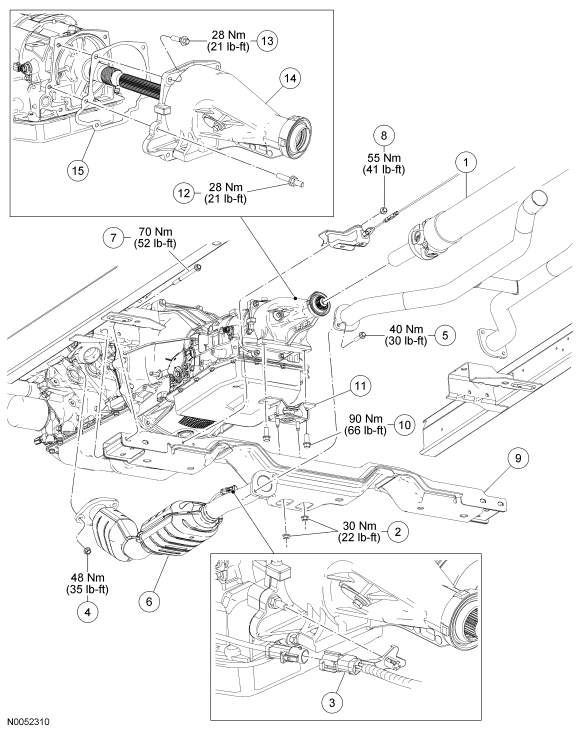

| Item | Part Number | Description |
|---|---|---|
| 1 | 4W73 | Driveshaft |
| 2 | W520514 | Transmission insulator nuts |
| 3 | 14A464 | HO2S/Catalyst monitor electrical connector (4 required) |
| 4 | W705443 | Exhaust flange nuts (4 required) |
| 5 | 56142 | Catalytic converter-to-exhaust flange bolts (4 required) |
| 6 | 5E212 | LH/RH catalytic converter |
| 7 | W709208 | Crossmember bolts (4 required) |
| 8 | W709747 | Parking brake cable bracket bolts (2 required) |
| 9 | 5027 | Crossmember |
| 10 | 387174 | Transmission insulator bolts |
| 11 | 6D091 | Transmission insulator |
| 12 | N803521 | Extension housing stud (2 required) |
| 13 | N803747 | Extension housing bolt (4 required) |
| 14 | 7A040 | Extension housing |
| 15 | 7086 | Extension housing gasket |
