Valve Cover - RH: Notes

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
Silicone Gasket Remover ZC-30	-

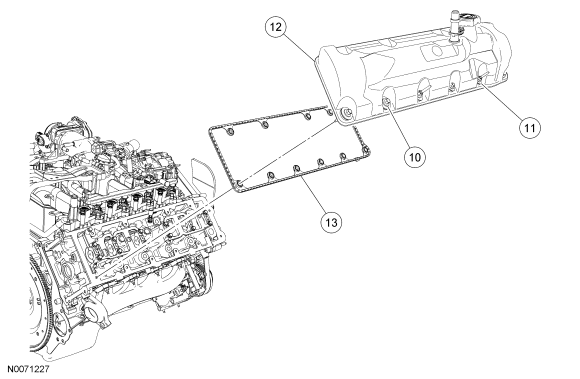

Fig 1: Exploded View Of Right Hand Valve Cover (1 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Crankshaft position (CKP) sensor electrical connector (part of 12B637)
2	14A464	A/C compressor electrical connector (part of 12B637)

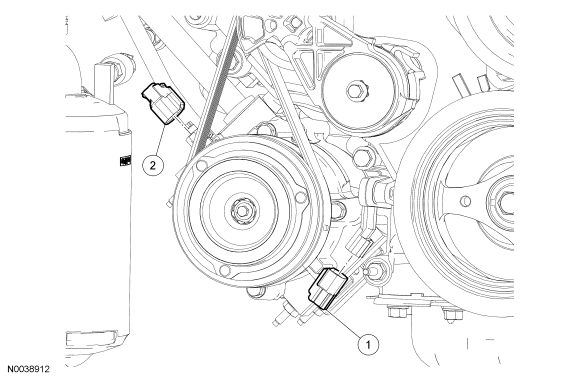

Fig 2: Exploded View Of Right Hand Valve Cover (2 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
3	14A464	PCV valve electrical connector (part of 12B637)
4	14A464	A/C pressure sensor electrical connector (part of 12B637)
5	14A464	Electronic engine control electrical connector (part of 12B637)
6	14A464	A/C accumulator switch electrical connector (part of 12B637)

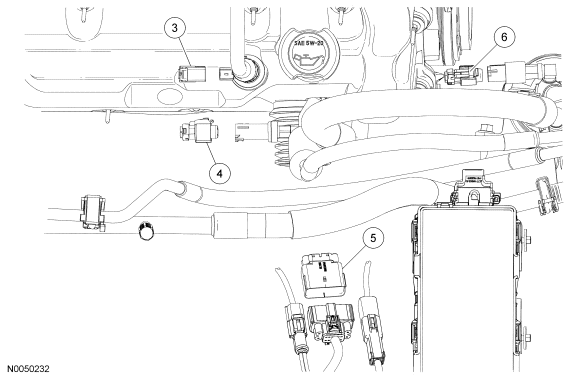

Fig 3: Exploded View Of Right Hand Valve Cover (3 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
7	6K817	PCV tube
8	14A464	Ignition coil electrical connector (4 required) (part of 12B637)
9	14A163	Engine wire harness retainer (3 required) (part of 12B637)

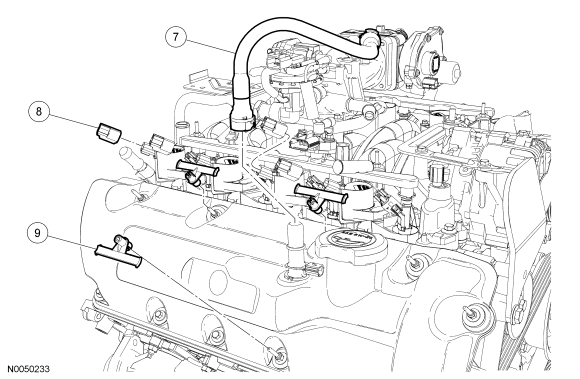

Fig 4: Exploded View Of Right Hand Valve Cover (4 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
10	N806183	RH valve cover bolt (4 required)
11	W705644	RH valve cover stud bolt (7 required)
12	6582	RH valve cover
13	6584	RH valve cover gasket
