Differential Seals: Installation

  1. Using the special tools, install the LH differential seal.

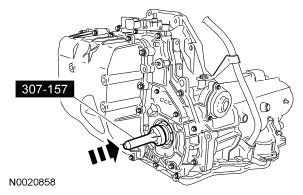

    Fig 1: Installing Differential Seal Using Special Tool (303-157)
    G04709900Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the RH seal.
    Fig 2: Installing RH Seal Using Special Tool (303-317) And (303-157)
    G04709901Courtesy of FORD MOTOR CO.
  3. Install the halfshafts into the vehicle. For additional information, refer to FRONT DRIVE HALFSHAFTS .
  4. Reconnect the battery ground cable.
