Home >> Ford >> 2006 >> Taurus SE, 3.0 2 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission External Controls >> Removal And Installation >> Transmission Selector Lever - Column Shift >> Notes

Transmission Selector Lever - Column Shift: Notes

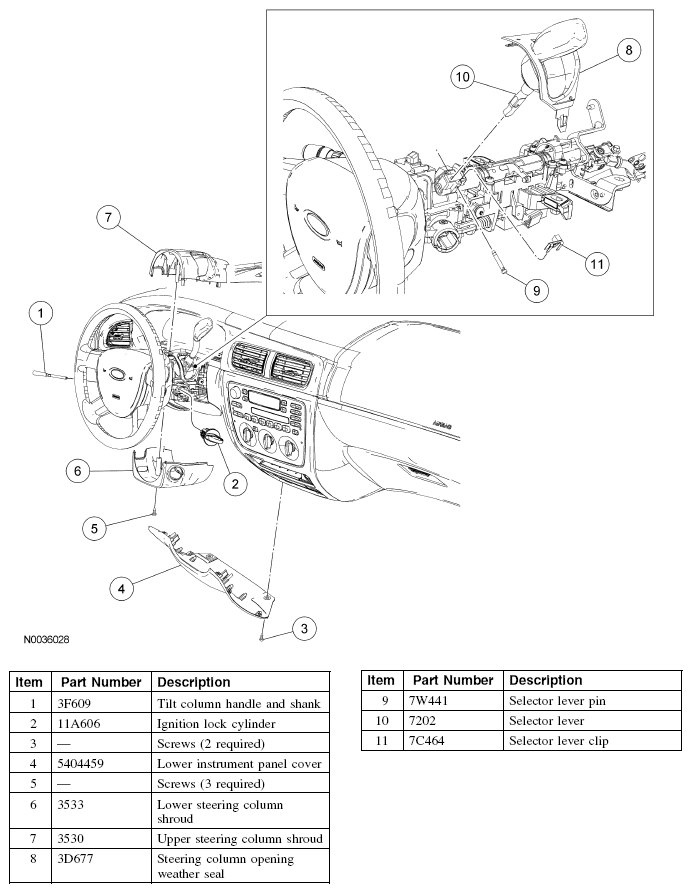

Fig 1: Exploded View Of Transmission Selector Lever - Column Shift

G04710577

Courtesy of FORD MOTOR CO.
