Power Steering Pump: Notes

SPECIAL TOOL(S) DESCRIPTION CHART

G04708775
 Installer, Power Steering Pump Pulley 211-009 (T65P-3A733-C)
G04708776
 Remover, Power Steering Pump Pulley 211-016 (T69L-10300-B)
G04708777
 Installer Set, Teflon Seal 211-D027 (D90P-3517-A) or equivalent

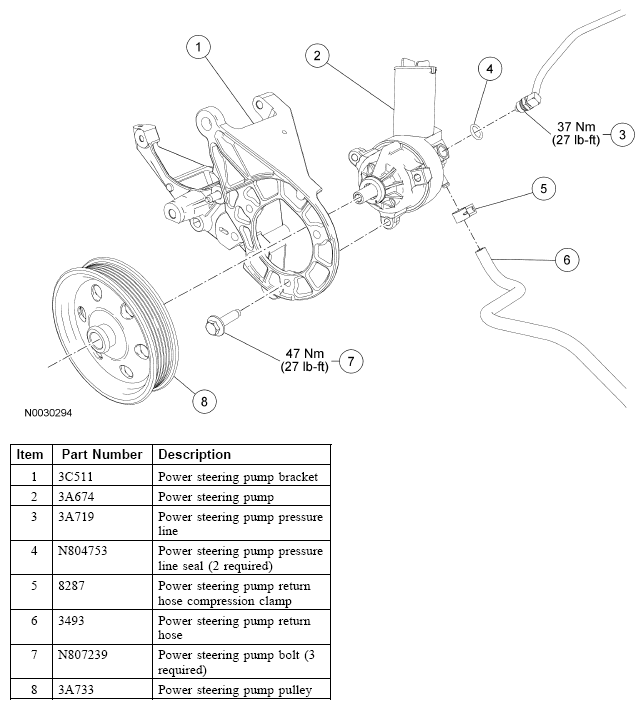

Fig 1: Power Steering Pump Replacement Components With Torque Specifications
G04708778Courtesy of FORD MOTOR CO.
