Inner Tie Rod: Notes

SPECIAL TOOL(S) DESCRIPTION CHART

	Inner Tie-Rod Socket Tool 211-D029 or equivalent
	Boot Clamp Pliers 205-D067 (D87P-1098-A) or equivalent
	Tie-Rod End Separator 211-001 (TOOL-3290-D) or equivalent

MATERIAL SPECIFICATION

Item	Specification
Steering Gear Grease C3AZ-19578-A	ESW-M1C87-A

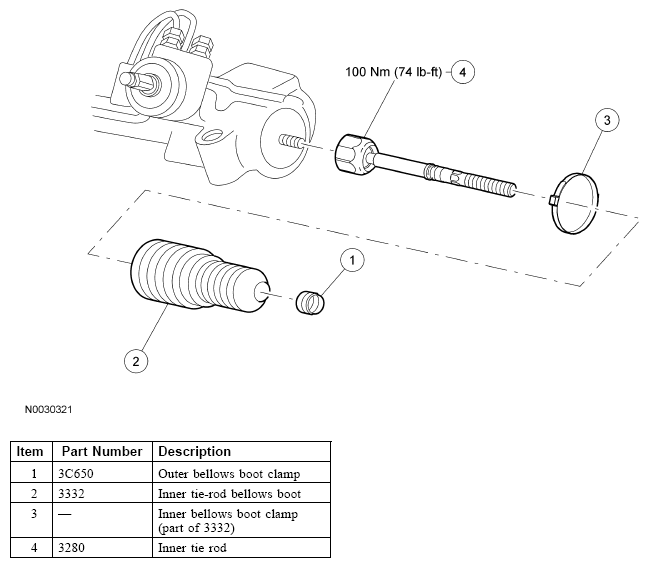

Fig 1: Inner Tie Rod Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
