Removal and Installation

  1. Remove the integrated control panel. For additional information, refer to CLIMATE CONTROL ASSEMBLY  in this article.
  2. Remove the function selector knob.
  3. Disengage the retaining tabs and remove the function selector switch.

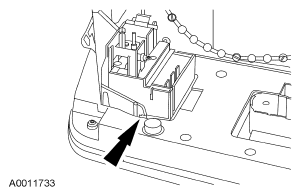

    Fig 1: Locating Function Selector Switch
    G04710980Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
