Cylinder Head - RH: Notes

MATERIAL

Item Specification
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket Remover ZC-30 -

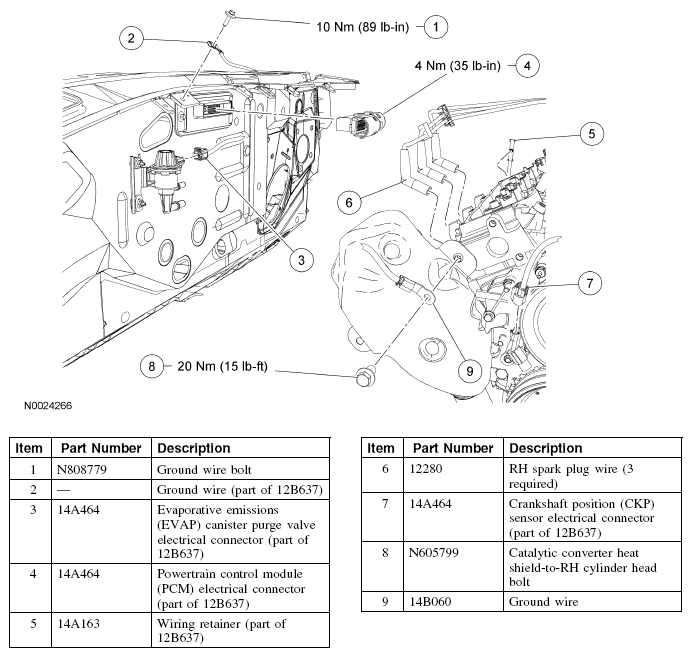

Fig 1: Removing/Installing Cylinder Head - RH Components With Torque Specifications (1 Of 2)
G04709123Courtesy of FORD MOTOR CO.

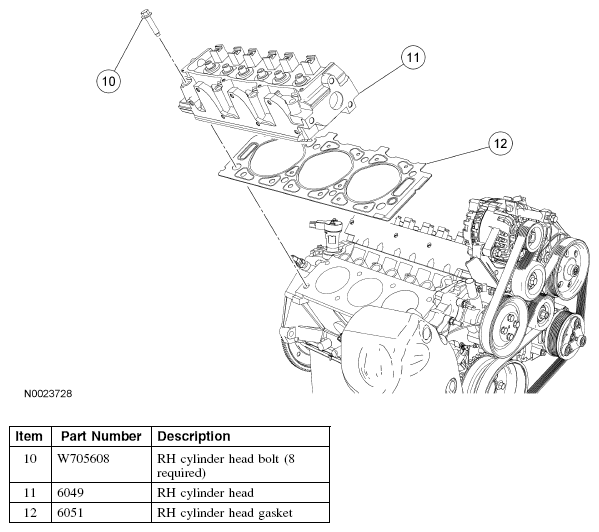

Fig 2: Removing/Installing Cylinder Head - RH Components (2 Of 2)
G04709124Courtesy of FORD MOTOR CO.
