Instrument Panel: Notes

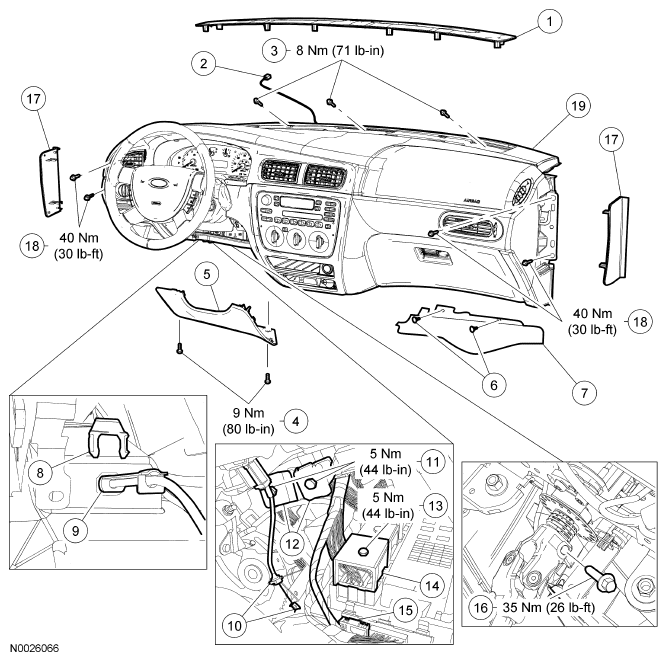

Fig 1: Instrument Panel Replacement Components With Torque Specifications (1 Of 2)
G04711678Courtesy of FORD MOTOR CO.

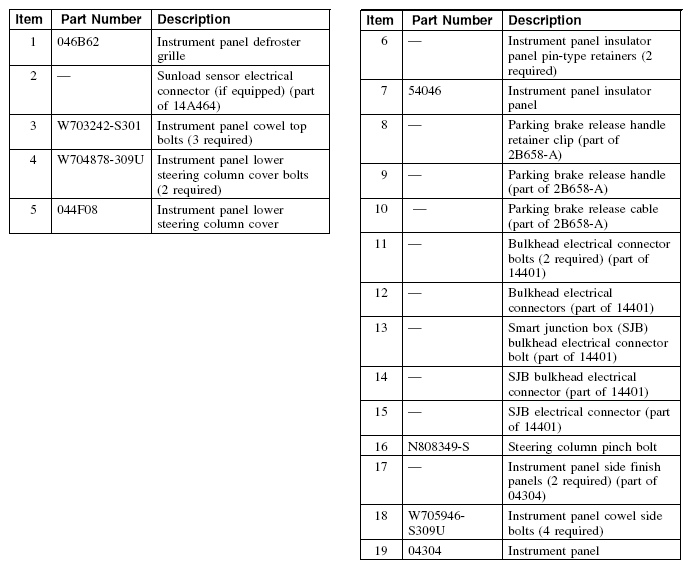

Fig 2: Instrument Panel Replacement Components With Torque Specifications (2 Of 2)
G04711679Courtesy of FORD MOTOR CO.
