Relay Center Box 1
NOTE:
For component location, see appropriate ELECTRICAL COMPONENT LOCATIONS article.

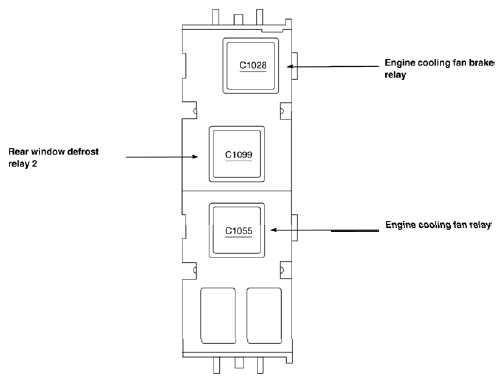

Courtesy of FORD MOTOR CO. RELAY CENTER BOX 1 RELAY IDENTIFICATION
| RELAY NUMBER |
RELAY DESCRIPTION |
| C1099 |
Rear window defrost relay 2 |
| C1028 |
Engine cooling fan brake relay |
| C1055 |
Engine cooling fan relay |
