Notes
Seat - Front: Notes
NOTE:
Driver seat shown, passenger seat similar.

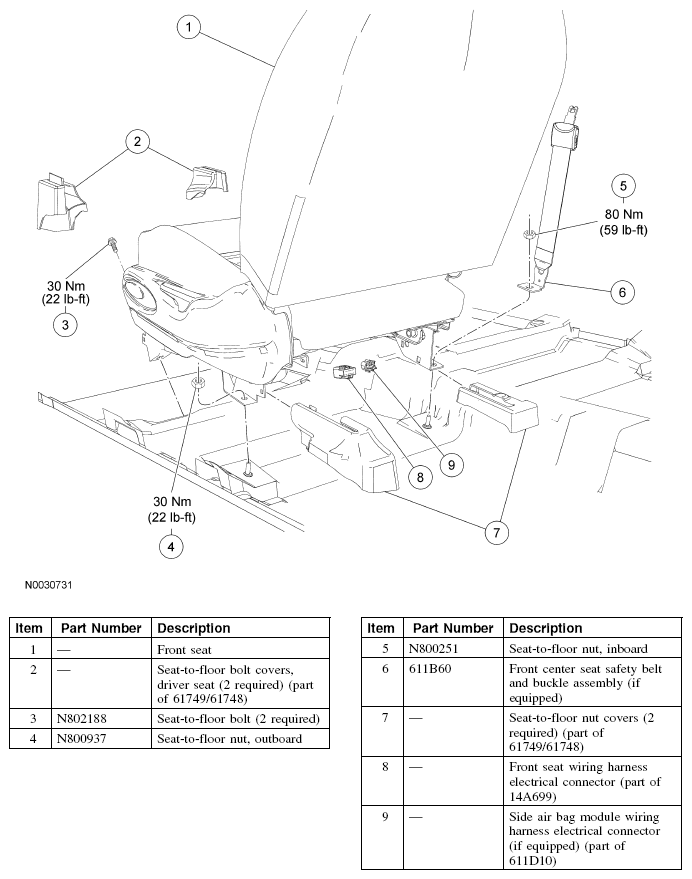

Fig 1: Seat Replacement Components -- Front With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
