Notes
Seat Backrest - Front: Notes
NOTE:
Driver seat shown, passenger seat similar.

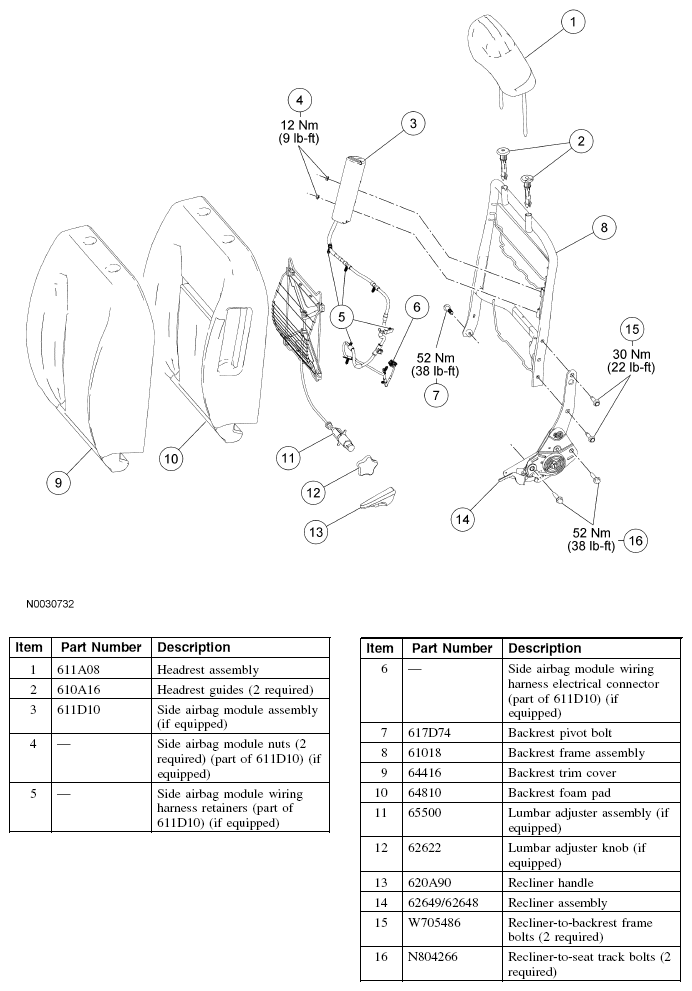

Fig 1: Exploded View Of Front Seat Backrest With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
