Removal and Installation

Remove the 2 pin-type retainers and the accelerator control splash shield.

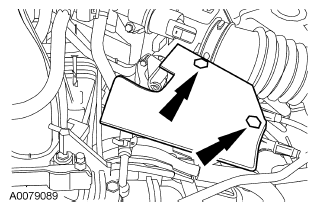

Fig 1: Locating 2 Pin-Type Retainers And Accelerator Control Splash Shield
Courtesy of FORD MOTOR CO.

CAUTION: Make sure the speed control cable is removed in the direction indicated on the cable where it attaches to the throttle cam.

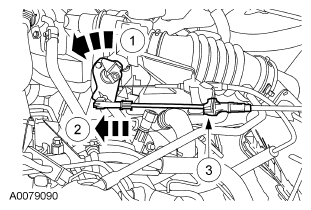

Fig 2: Disconnecting Speed Control Cable From Throttle Cam

Courtesy of FORD MOTOR CO.

Disconnect the speed control cable from the throttle cam.
1. Rotate the throttle valve.
2. Disconnect the cable.
3. Squeeze the speed control cable tabs and remove the cable from the cable bracket.
Release the speed control cable cap.
1. Press the speed control cable cap retaining tab.
2. Rotate the speed control cable cap counterclockwise and pull the cable cap away from the actuator housing.

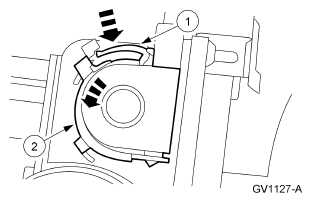

Fig 3: Removing Speed Control Cable Cap
Courtesy of FORD MOTOR CO.
Remove the speed control cable.
1. Press the spring retainer.
2. Slide the core wire end out of the speed control actuator pulley and remove the speed control cable.
Fig 4: Removing Speed Control Cable
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure
