Main Control Valve Body: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Aligner, Valve Body 307-333 (T95L-70010-B)
Courtesy of FORD MOTOR CO.	Aligner, Valve Body 307-334 (T95L-70010-C)

MATERIALS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

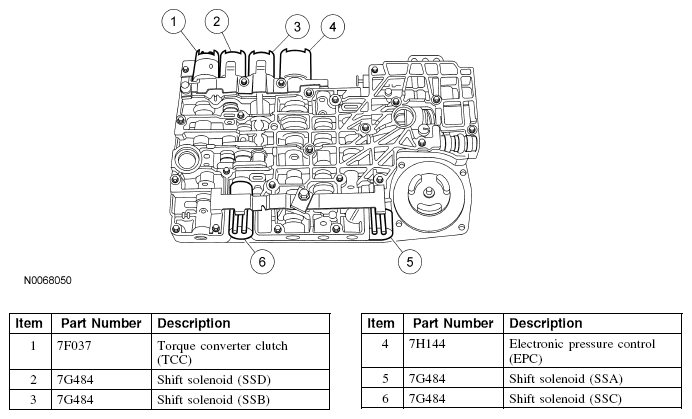

Fig 1: Identifying Main Control Valve Body Components

Courtesy of FORD MOTOR CO.
