Intermediate Shaft Speed Sensor: Installation

    NOTE: Inspect the intermediate shaft speed sensor O-ring for damage. If damaged, install a new O-ring.
  1. Inspect and lubricate the O-ring with petroleum jelly.
    1. Install the intermediate shaft speed sensor into the transmission.
    2. Install the intermediate shaft speed sensor screw.
      • Tighten to 10 N.m (89 lb-in).
        Fig 1: Identifying Intermediate Shaft Speed Sensor Into Transmission
        G04701857Courtesy of FORD MOTOR CO.
  2. Connect the intermediate shaft speed sensor electrical connector.

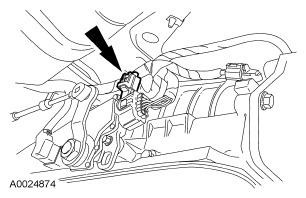

    Fig 2: Locating Intermediate Shaft Speed Sensor Electrical Connector
    G04701858Courtesy of FORD MOTOR CO.
  3. Lower the vehicle.
