Main Control Valve Body: Notes

SPECIAL TOOL(S)

G04702110Courtesy of FORD MOTOR CO.
 Aligner, Valve Body
307-333 (T95L-70010-B)
G04702111Courtesy of FORD MOTOR CO.
 Aligner, Valve Body
307-334 (T95L-70010-C)

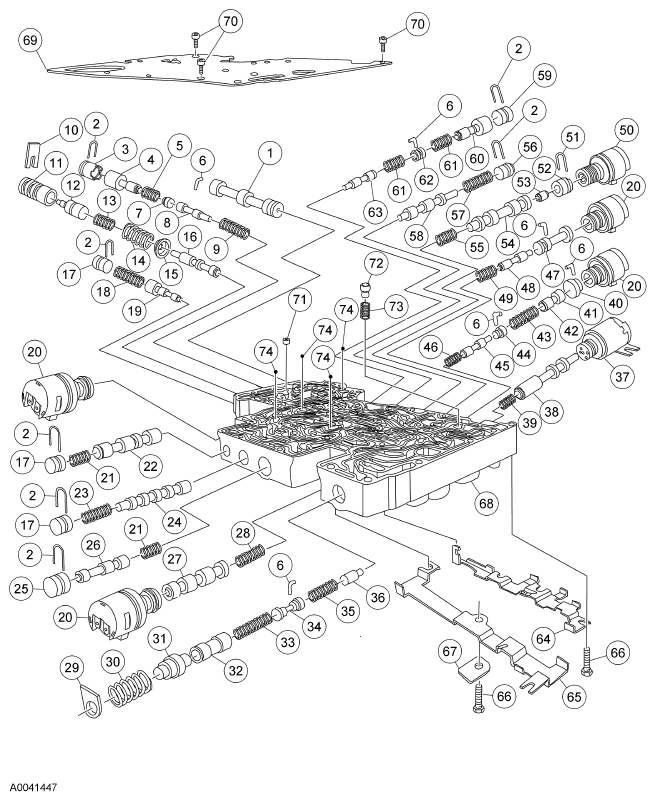

Fig 1: Identifying Exploded View Of Main Control Valve Body Components
G04702112Courtesy of FORD MOTOR CO.

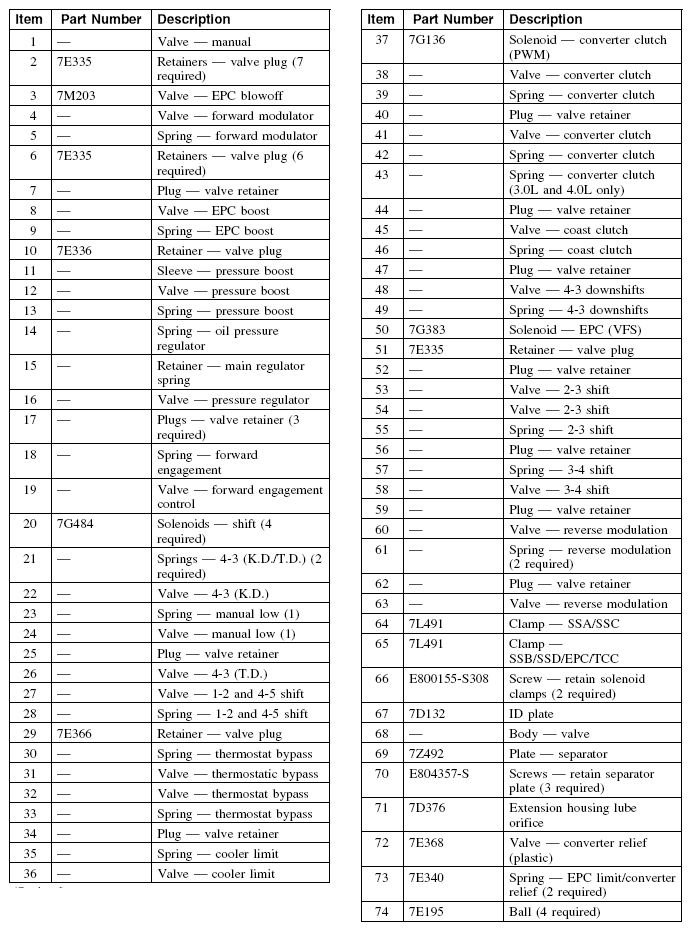

Fig 2: Identifying Main Control Valve Body Description Reference Table
G04702113Courtesy of FORD MOTOR CO.

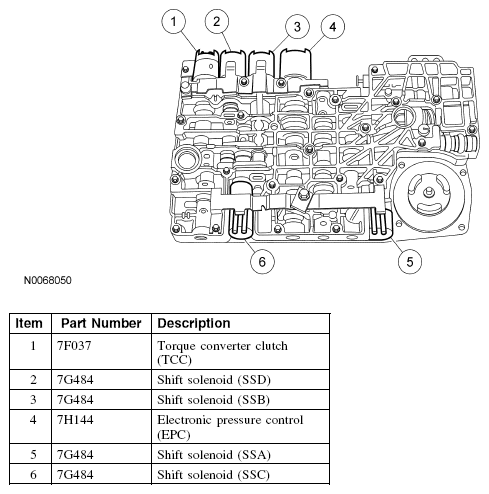

Fig 3: Identifying Torque Converter Switch, Shift Solenoid (SSD) & Shift Solenoid (SSA) Components
G04702114Courtesy of FORD MOTOR CO.
