Front Planetary and One-Way Clutch Assembly: Notes

SPECIAL TOOL(S)

G04702228Courtesy of FORD MOTOR CO.
 Sleeve, One-Way Clutch
307-391
G04702229Courtesy of FORD MOTOR CO.
 Installer, One-Way Clutch
307-392

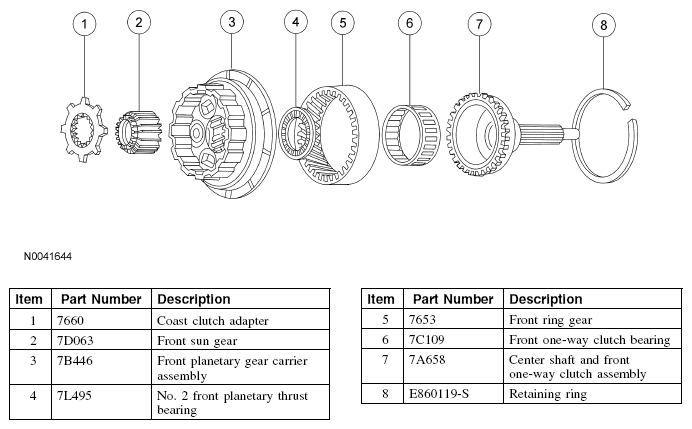

Fig 1: Identifying Front Planetary & One-Way Clutch Assembly Components
G04702230Courtesy of FORD MOTOR CO.
