Forward Clutch: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring 307-015 (T65L-77515-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-051 (T74P-77548-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-052 (T74P-77548-B)

MATERIALS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

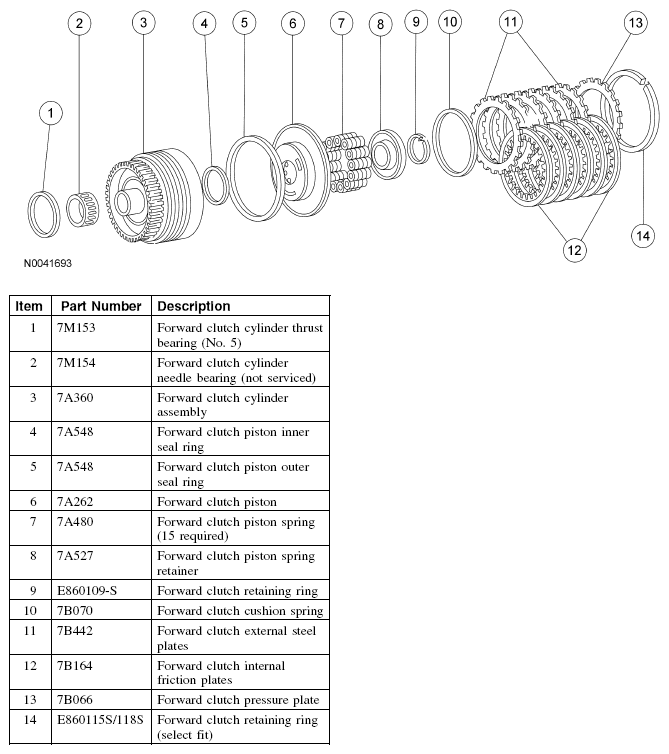

Fig 1: Identifying Exploded View Of Forward Clutch Assembly Components

Courtesy of FORD MOTOR CO.
