Anti-Lock Brake System (ABS) Module: Notes

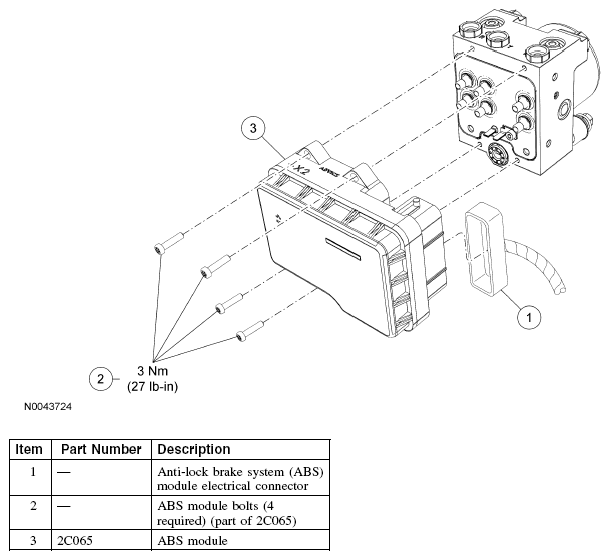

Fig 1: Anti-Lock Brake System (ABS) Module Replacement Components With Torque Specifications

G04699853

Courtesy of FORD MOTOR CO.
