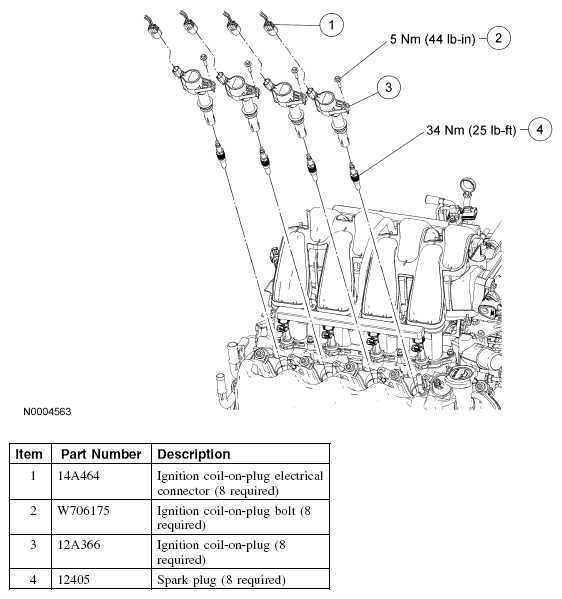

Engine Ignition Components - Exploded View

NOTE: LH shown, RH similar.

Fig 1: Identifying Engine Ignition Remove/Install Components

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedure.
