Home >> Ford >> 2006 >> Mustang GT, 2D Convertible, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti- Lock Brake System >> Removal And Installation >> Wheel Speed Sensor - Front >> Notes

Wheel Speed Sensor - Front: Notes

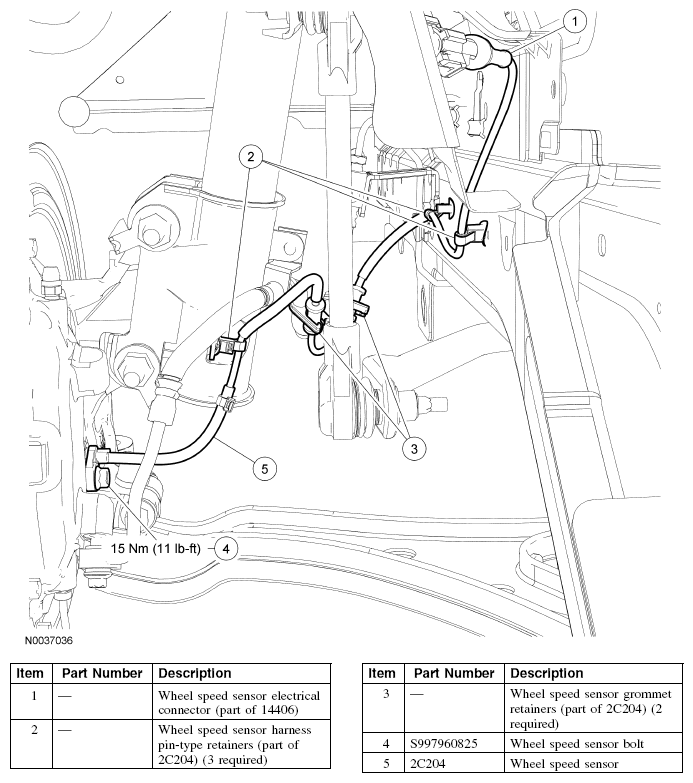

Fig 1: Wheel Speed Sensor - Front Replacement Components - With Torque Specifications

G04694526
