Fuel Pump Driver Module (FPDM): Notes

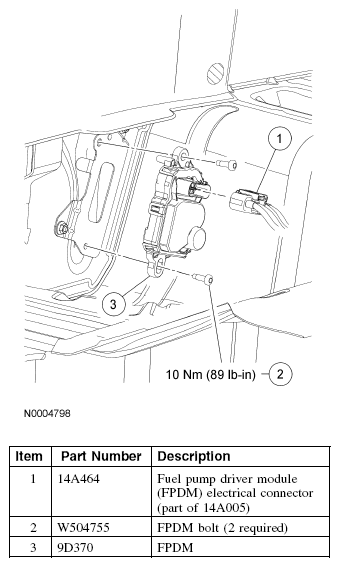

Fig 1: Identifying Fuel Pump Driver Module (FPDM) Components
G04695951Courtesy of FORD MOTOR CO.
