Mustang Base, 2D Coupe, Standard
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Power Steering System
>>
Removal And Installation
>>
Power Steering System - Exploded View
Power Steering System - Exploded View

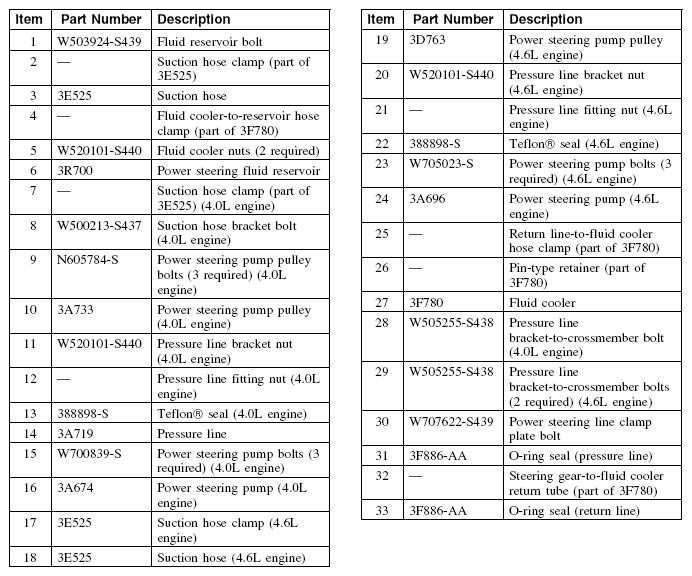

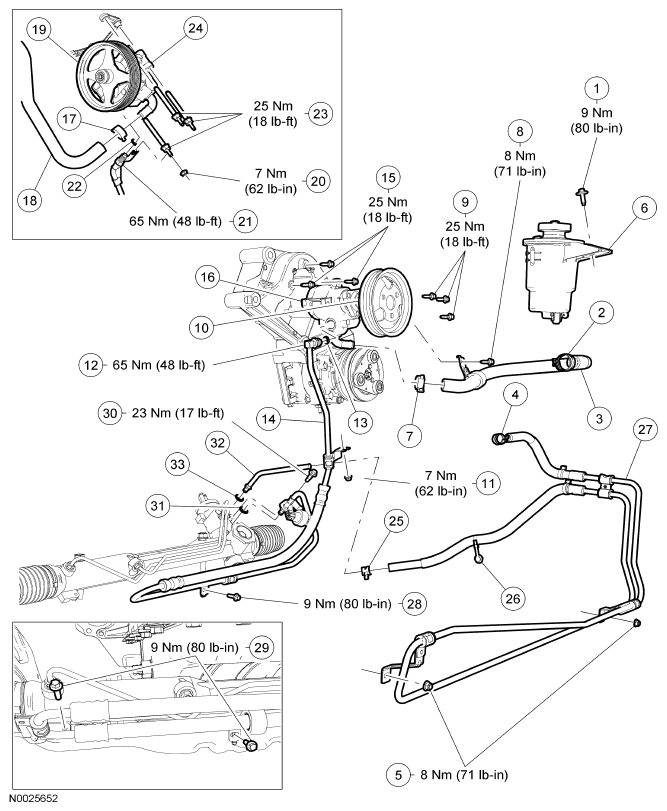

Fig 1: Power Steering System - Exploded View (1 Of 2) - With Torque Specifications
Fig 2: Power Steering System - Exploded View (2 Of 2)
For additional information, refer to the appropriate procedures in this article.
