Engine Ignition System - 4.0L SOHC
>>
Removal And Installation
>>
Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View

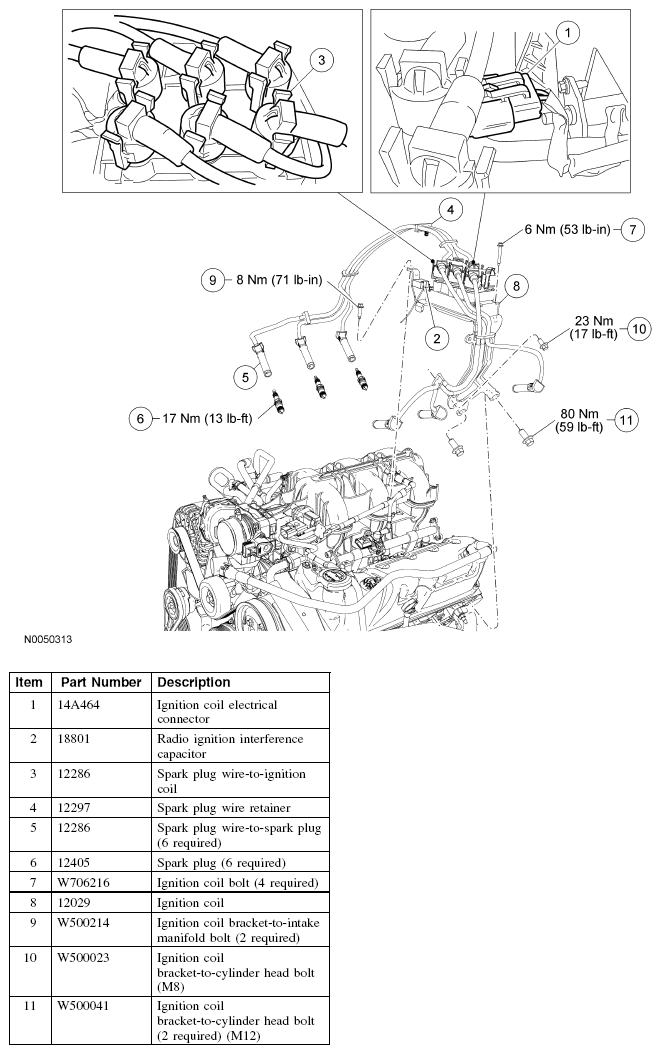

Fig 1: Identifying Engine Ignition Remove/Install Components
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure.
Courtesy of FORD MOTOR CO.
