Clutch Controls

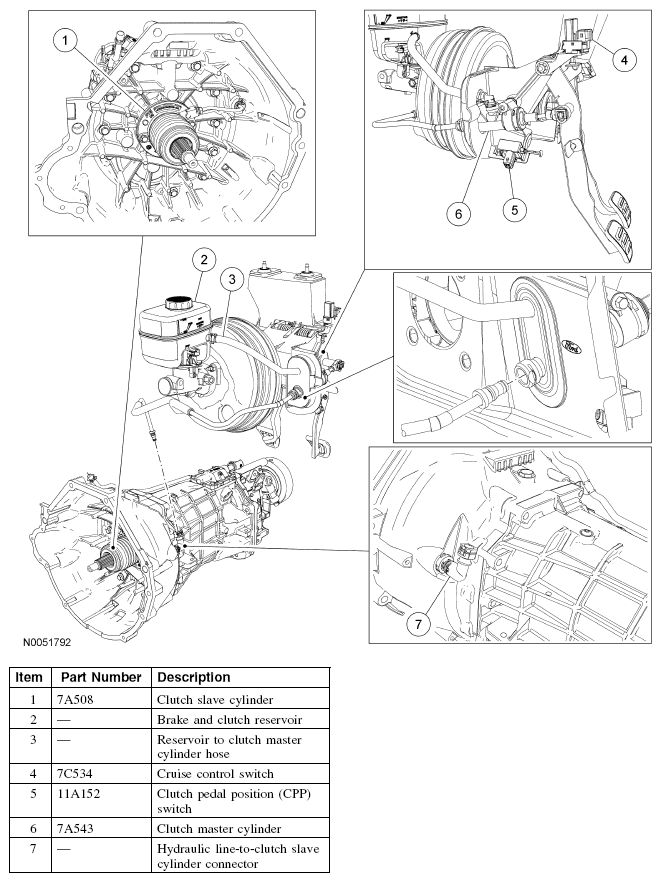

Fig 1: Identifying Clutch Controls - Vehicles With 4.0L Engine And T50D Transmission

Courtesy of FORD MOTOR CO.

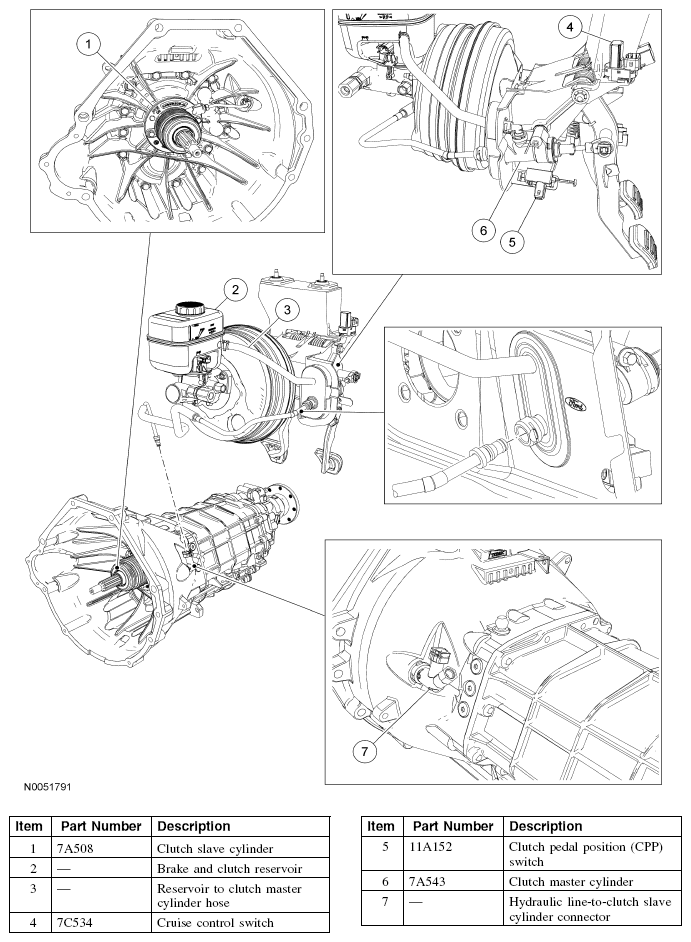

Fig 2: Identifying Clutch Controls - Vehicles With 4.6L Engine And T3650 Transmission

Courtesy of FORD MOTOR CO.

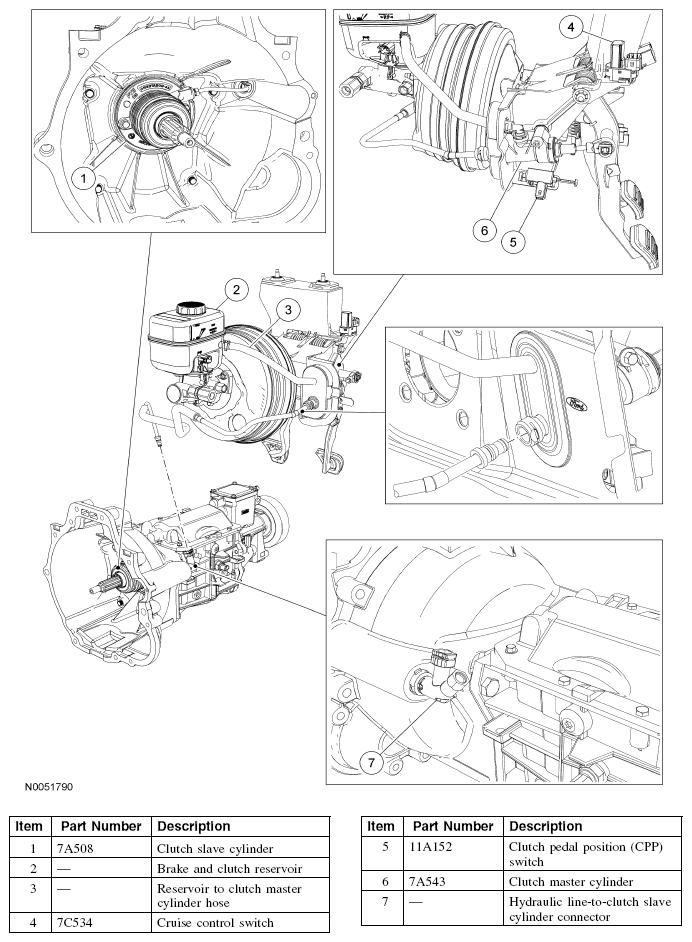

Fig 3: Identifying Clutch Controls - Vehicles With 5.4L Engine And T6060 Transmission

Courtesy of FORD MOTOR CO.

The clutch control system actuates the clutch system. The clutch control system disengages the clutch when the clutch pedal is depressed and engages the clutch when the clutch pedal is released. When the clutch pedal is depressed it pushes the clutch master cylinder plunger, which transmits hydraulic pressure to the clutch slave cylinder. The clutch slave cylinder engages and compresses the clutch pressure plate diaphragm spring, releasing the pressure on the clutch disc, which in turn disengages the transmission from the engine.

• The hydraulic clutch system adjusts automatically to compensate for clutch disc wear.
• The clutch pedal position (CPP) switch prevents the starter motor from engaging unless the clutch pedal is depressed all the way to the floor. The switch plunger is contacted by the clutch pedal and extends as the clutch pedal is pressed. The clutch pedal position switch is electrically connected in line with the ignition switch and the starter motor relay coil.
• The cruise control switch deactivates the speed control system and signals the electronic engine control (EEC) module when the clutch pedal is depressed.
