Auxiliary Relay Box 1

NOTE: For component location, see ELECTRICAL COMPONENT LOCATOR article.

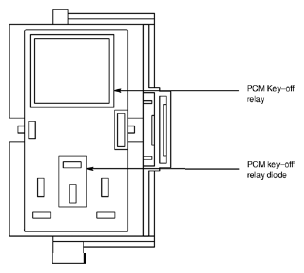

Fig 1: Auxiliary Relay Box 1 Components
G05910001Courtesy of FORD MOTOR CO.
AUXILIARY RELAY BOX 1 RELAY IDENTIFICATION

RELAY DESCRIPTION
PCM Key-off Relay
PCM Key-off Relay diode
