Transmission Support Crossmember: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the catalytic converter. For additional information, refer to EXHAUST SYSTEM .
  3. Support the transmission with a transmission jack.
  4. Remove the transmission crossmember-to-floor pan screws.
    Fig 1: Locating Transmission Crossmember-To-Floor Pan Screws
    G03982786
  5. Remove the transmission insulator-to-extension housing center screw.

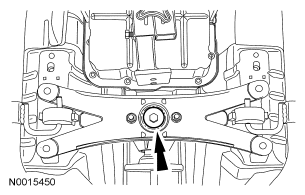

    Fig 2: Identifying Transmission Mount Center Screw
    G04696263
  6. Remove the transmission crossmember.
