Extension Housing Gasket: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the driveshaft. For additional information, refer to DRIVESHAFT .
  3. Remove the catalytic converter assembly. For additional information, refer to EXHAUST SYSTEM .
    NOTE: Use a suitable transmission jack to support the transmission.
  4. Remove the 4 transmission crossmember-to-floor pan screws.
    Fig 1: Locating Transmission Crossmember-To-Floor Pan Screws
    G03982786
  5. Remove the transmission insulator-to-extension housing center screw and remove the transmission crossmember.

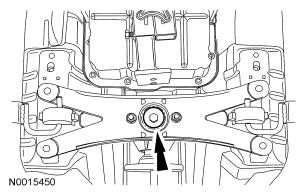

    Fig 2: Identifying Transmission Mount Center Screw
    G04696221
  6. Remove and discard the nut.

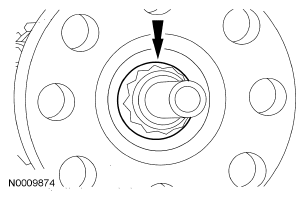

    Fig 3: Locating Nut
    G04696222
  7. Using the special tool, remove the output shaft flange.
    Fig 4: Identifying Special Tool
    G04696223
    CAUTION: The parking pawl, parking pawl return and parking pawl shaft could fall out during removal of the extension housing.
  8. Remove the 7 extension housing screws and the extension housing.
    Fig 5: Identifying Extension Housing And Mounting Screws
    G04696224
  9. Remove and discard the extension housing gasket.
    Fig 6: Identifying Extension Housing Gasket
    G04696225
