Digital Transmission Range (TR) Sensor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
    WARNING: Secure the transmission to the transmission jack with a safety chain. Failure to follow these instructions may result in personal injury.
  2. Using a suitable transmission jack, support the transmission.
  3. Remove the transmission crossmember-to-floor pan screws and lower the transmission enough to gain access to the TR sensor.
    Fig 1: Locating Transmission Crossmember-To-Floor Pan Screws
    G03982786
  4. Disconnect the digital TR sensor connector.

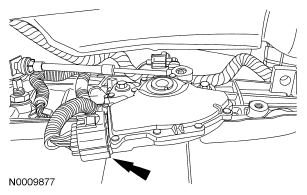

    Fig 2: Locating Digital Transmission Range Sensor Connector
    G04696253
  5. Disconnect the transmission shift cable from the manual control lever.
    Fig 3: Locating Shift Cable Eyelet At Manual Control Lever
    G04696254
  6. Remove the digital TR sensor screws and remove the digital TR sensor.
    Fig 4: Locating Digital TR Sensor Screws
    G04696255
