Transmission Fluid Drain and Refill - Without Torque Converter Drain Plug: Notes
SPECIAL TOOL(S)
| Rubber Tip Air Nozzle 100-D009 (D93L-7000-A) |
|
| Vacuum Pump Kit 416-D002 (D95L-7559-A) |
|
| Fluid Transporter/Evacuator/Injector 307-D465 |
|
| Adapter, Fluid Level and Fill Plug 307-437 |
|
| Worldwide Diagnostic System (WDS) Vehicle Communication module (VCM) with appropriate adapters, or equivalent diagnostic tool |
MATERIAL
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM | MERCON® V |

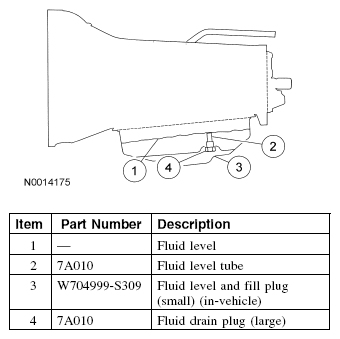

Fluid Fill Reference
NOTE:
Left side of case is shown.
