External Sealing: Notes
CAUTION:
Do not try to stop a fluid leak by increasing the torque beyond specifications. This may cause damage to the transmission case threads.
The transmission has the following parts to prevent external fluid leakage:
- Gaskets
- Lip-type seals
- O-ring seals
- Seal rings
- Seal grommets
- Seal washers
- Thread sealant

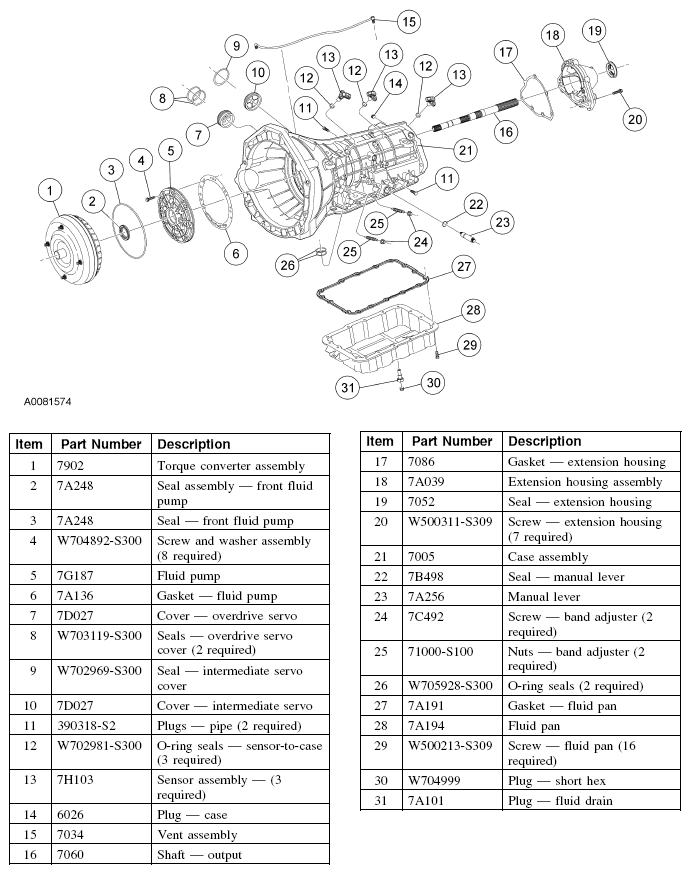

External Sealing
