Selector Lever: Removal

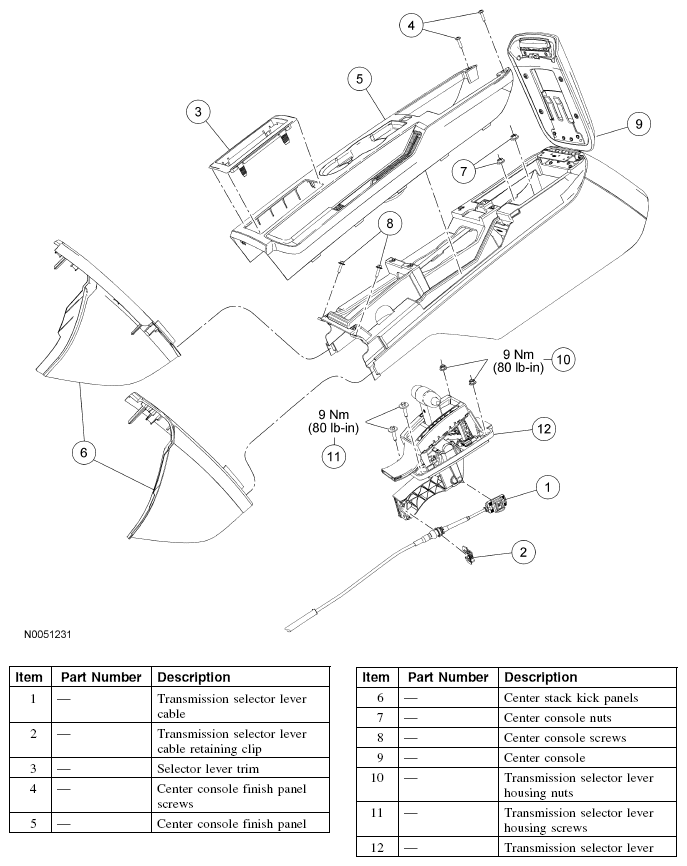

Fig 1: Identifying Selector Lever Remove/Install Components

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the selector lever cable from the selector lever.

Fig 2: Removing Selector Lever Cable From Selector Lever
Remove the selector lever cable from the bracket and discard the clip.

Fig 3: Locating Selector Lever Cable From Bracket And Discard Clip
Remove the center console selector lever trim.

Fig 4: Locating Center Console Selector Lever Trim
Remove the 2 screws and the center console top finish panel.

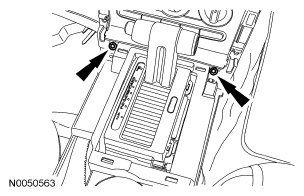

Fig 5: Locating Screws And Center Console Top Finish Panel

NOTE: Passenger side center console kick panel shown, driver side similar.
Remove the driver and passenger center console kick panels.

Fig 6: Locating Driver And Passenger Center Console Kick Panels
Remove the 2 screws in the bottom of the console bin.

Fig 7: Locating Screws In Bottom Of Console Bin
Remove the 2 screws from the front of the console.

Fig 8: Locating Screws From Front Of Console
Lift up the console, disconnect the power point electrical connector and remove the console.

Fig 9: Locating Power Point Electrical Connector
Disconnect the selector lever electrical connector.

Fig 10: Locating Selector Lever Electrical Connector
Remove the 2 nuts and the 2 screws and carefully lift the transmission selector lever assembly from the vehicle.

Fig 11: Locating Transmission Selector Lever Nuts And Screws (1 Of 2)
