Selector Lever Cable and Bracket: Installation

Install the selector lever cable bracket and install the 2 bolts.
- Tighten to 28 Nm (20 lb-ft).

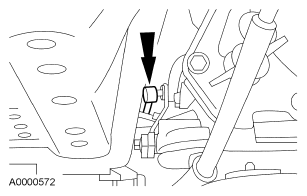

  Fig 1: Locating Transmission Shift Cable Bracket Bolts
Install the selector lever cable eyelet onto the transmission manual lever.

Fig 2: Locating Selector Lever Cable Eyelet Onto Transmission Manual Lever

NOTE: It is necessary to install a new plastic clip prior to installation.
Install the selector lever cable into the selector lever cable bracket.

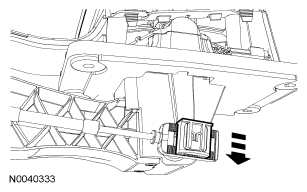

Fig 3: Locating Selector Lever Cable Into Selector Lever Cable Bracket
Install the selector lever cable onto the selector lever and lock the selector lever cable adjustment lock.

Fig 4: Installing Selector Lever Cable Onto Selector Lever And Lock Selector Lever Cable Adjustment Lock
Verify the selector lever cable is adjusted correctly. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT in this article.
