Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Safety Belt System
>>
Removal And Installation
>>
Safety Belt Retractor - Rear
>>
Notes
Safety Belt Retractor - Rear: Notes
NOTE:
RH side shown, LH side similar.

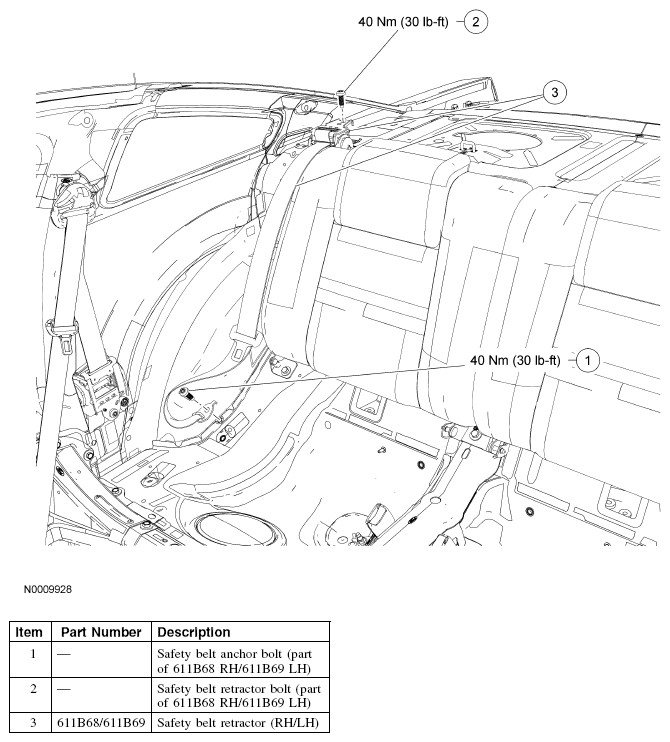

Fig 1: Rear Safety Belt Retractor Replacement Components - With Torque Specifications
