Compressor Manifold and Tube Assembly - 4.0L: Notes

MATERIAL SPECIFICATIONS

Item Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D WSH-M1C231-B

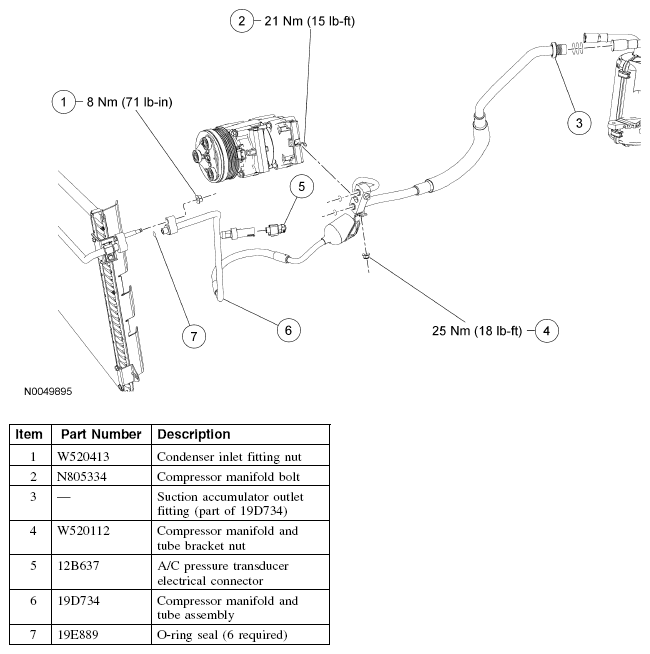

Fig 1: Compressor Manifold And Tube Assembly Replacement Components -- 4.0L - With Torque Specifications
G04697487
