Home >> Ford >> 2006 >> Mustang Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Removal And Installation >> Radiator >> Notes

Removal And Installation: Radiator: Notes

Fig 1: Radiator, Upper Radiator Hose And Hose Clamp - With Torque Specifications
G04695940

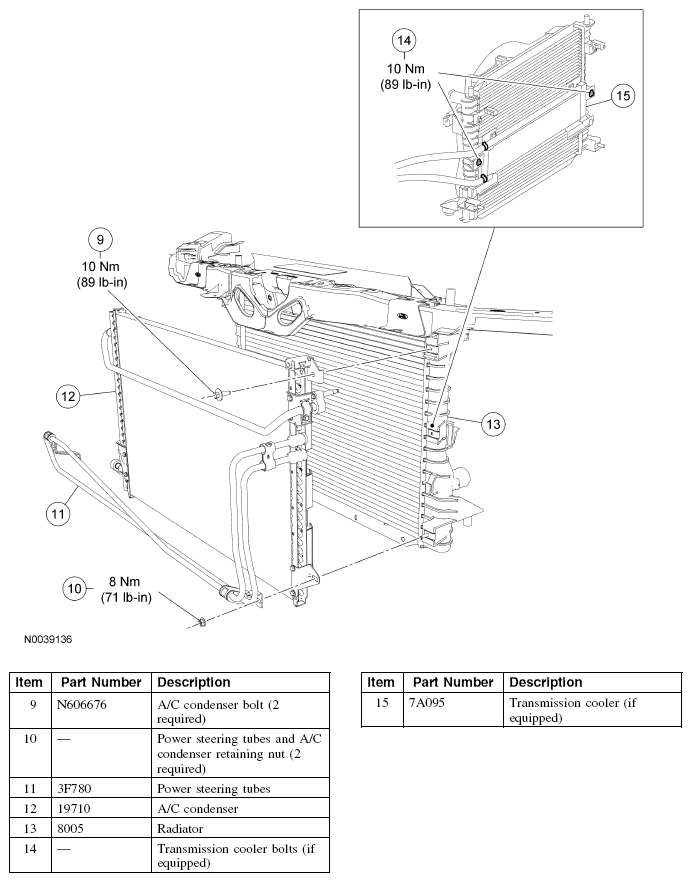

Fig 2: Radiator, A/C Condenser And Power Steering Tubes - With Torque Specifications
G04695941
