Home >> Ford >> 2006 >> Mustang Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Panel And Console >> Removal And Installation >> Instrument Panel Center Finish Panel >> Notes

Instrument Panel Center Finish Panel: Notes

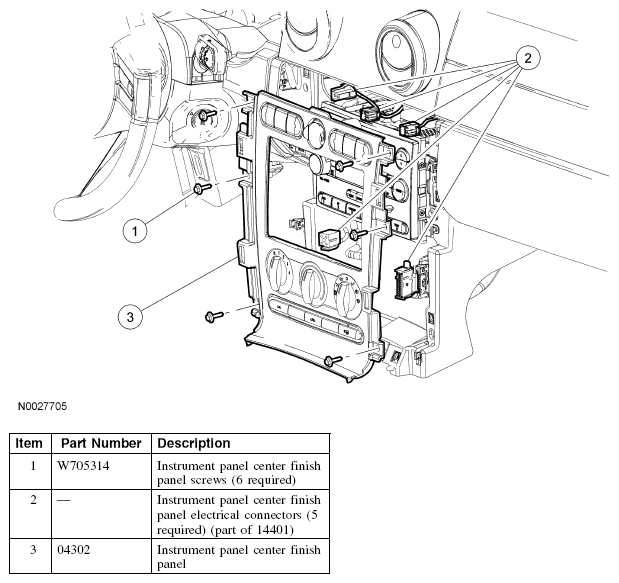

Fig 1: Identifying Instrument Panel Center Finish Panel Components

G04698068

Courtesy of FORD MOTOR CO.
