Seat Backrest - Front: Notes

NOTE: Driver backrest shown, passenger backrest similar.

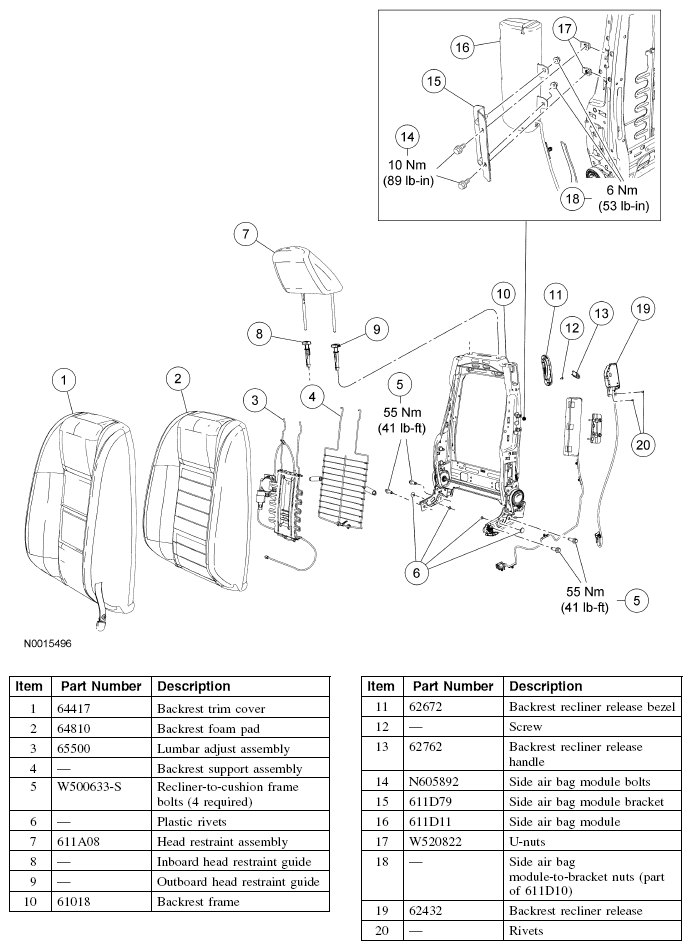

Fig 1: Exploded View Of Front Seat Backrest - With Torque Specifications

G04697964
