Wiper and Washer System - Exploded View

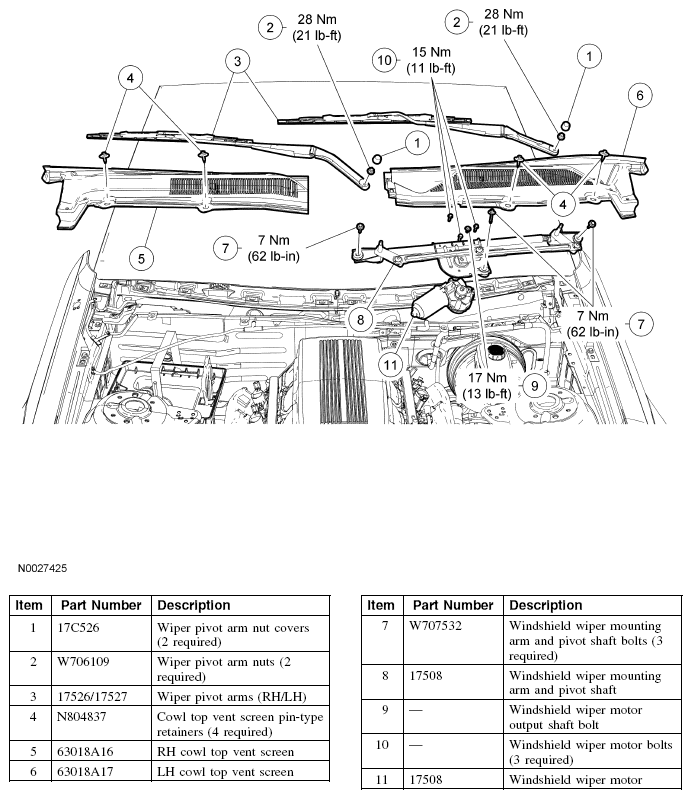

Fig 1: Exploded View Of Wiper And Washer System - With Torque Specifications
G04698132
  1. For additional information, refer to the appropriate procedures in this article.
