Safety Belt Buckle - Front: Notes

NOTE: LH shown, RH similar.

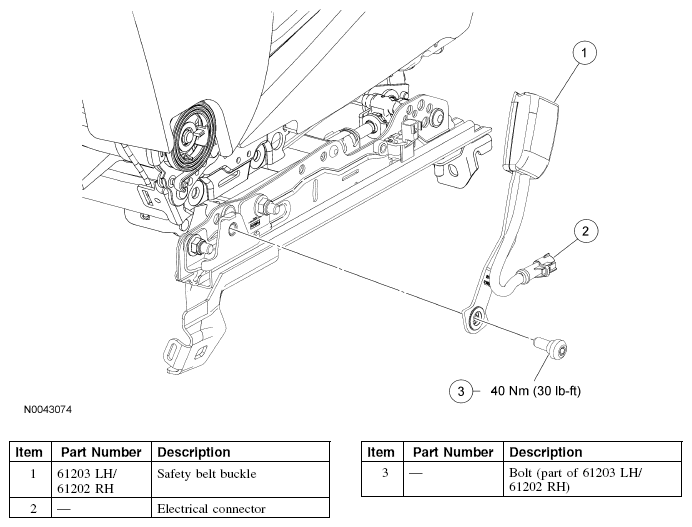

Fig 1: Identifying Safety Belt Buckle - Front Components

G04683823

Courtesy of FORD MOTOR CO.
